Product Description

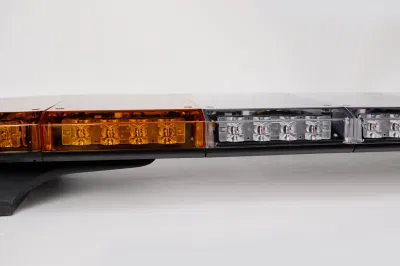

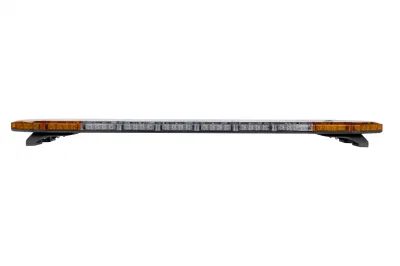

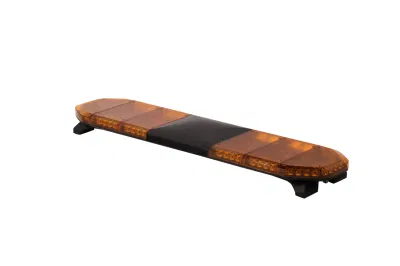

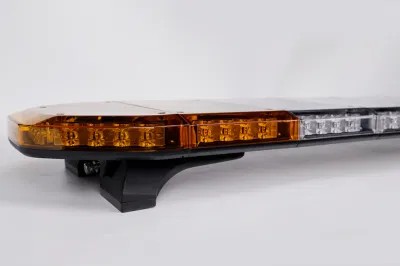

SPIRAL Lightbar TBD-A3
1.High transparent UV proof polycarbonate lens cover
2.The modular integrated configuration maximizes the waterproof, vibration-proof and stability of the lightbar
3.Specially designed super thin profile but no distortion concern
4.Super large area aluminum housing enhances the LED module heat dissipation
5.Different length configurations could be customized
6.Widely applied for off road or other emergency vehicles
7.Compliant to ECE R65 and SAE standard
SPIRAL- TBD-A3 is a super thin and compact new LED warning lightbar specially developed and made by Senken in 2018 for global emergency warning market. Its light weight body design fully demonstrates aerodynamics and greatly reduces wind resistance and wind noise. This lightbar can be widely applied for off road or other emergency vehicles.
| Dimension (L*W*H) | Length optional with 612mm, 759mm, 906mm, 1053mm, 1200mm, 1347mm, 1494mm*280*98 mm |
| Mounting | Gutter mounting |
| Working voltage | DC10-30V |
| LED Power | 3W LED each |
| Waterproof | IP65 |
| Color | RED/ BLUE/ AMBER/ WHITE |
| Flashing mode | 10 types |
| Material | PC lens + Aluminium Base |
| Certificate Approved | ECE R65 Class 1 (amber) ECE R65 Class 2 (red/blue) SAE |
