Basic Info.
Model NO.
BDJ-02
Alarm Volume (within 1m)
≥110dB
Receive Frequency
433.92MHz
Transport Package
Standard Export Packing
Specification
500-2
Trademark
SHUNTONG
Origin
Zhejiang, China
Production Capacity
20000PCS/Month

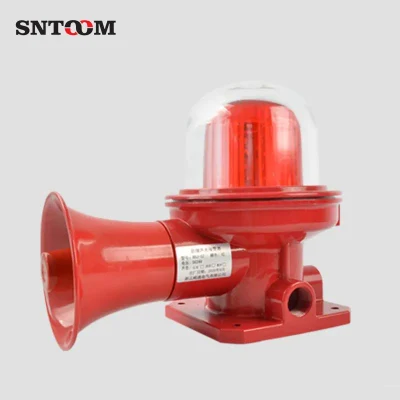

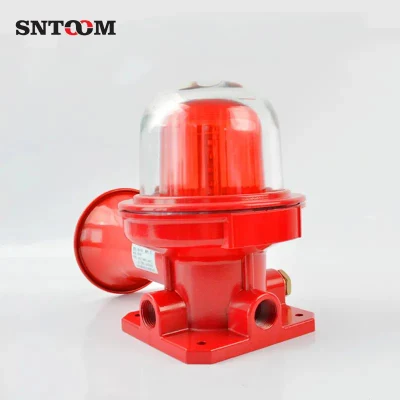

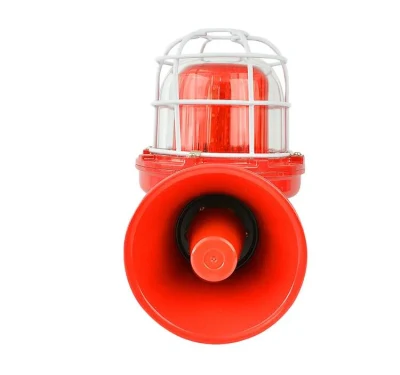

Product Description
1. The shell is made of aluminum alloy die cast ZL102 high surface pressure electrostatic spray.
2. tempered glass lampshade, stainless steel exposed fasteners.
3. There are several built-shade color red, yellow, blue, etc. are available.
4. Pipe or cable wiring can be.
Explosion sound and light alarm sound and an alarm installed in the field of optical equipment. Used to alert the site personnel .BBJ explosion sound and light alarm flameproof suitable for petroleum, chemical industry, metallurgy, etc. containing gas in the event of a fire place.
Technology parameter:
1.Temperature:-50ºC-+80ºC
2.Relative humidity:≤95%
3.Atmospheric pressure:80-110KPa
4.Voltage:DC24V AC220V
5.Alarm operating current:DC24V≤700mA .AC220V≤80mA
6.Sound intensity:90 dB-180dB
7.Dimensions:195×130×221(L)
8.Weight:2.08kg
9.Protection class:IP65
Specification
| Product name | Alarm warning light | Voltage | AC220V/24V/380V(Customizable) |
| Model | BDJ-02 | ||
| Voice customization | Customizable | Explosion proof sign | ExdIICT6Cb |
| Horn frequency | 180dB | Light source form | LED |
| Horn class | IP65 | Material | Aluminum alloy base |
| Application fields: petroleum, chemical industry, metallurgy, pharmacy and other places containing flammable and explosive mixed gases. | |||
