Basic Info.
Product Description
Fully sealed, vacuum, filled with nitrogen
Constant pressure patent design
ECE R65 International Light Intensity Standard
24 high-brightness 1W LEDs
Fresnel special optical lens polycarbonate round shade
LED aluminum circuit board, anti-corrosion aluminum alloy top cover and base
Blinking light fixed warning mode
International universal cigarette lighter power connection plug, nylon flexible bracket
Built-in reverse polarity, LED constant current, wide voltage and load-dump pulse voltage protection circuit
IP69K waterproof grade LED beacon light
Fully sealed, vacuum, filled with nitrogen to prevent fogging
With all-weather outdoor use and high-pressure water washing cleaning protection
Constant heat expansion and cold contraction pressure. The patented design balances the temperature and pressure difference between the machines internal working temperature and the outside environment to ensure that the full seal of the warning light is not damaged.
24 high-brightness SMD 1W LEDs
Fresnel special optical lens polycarbonate dome shade
High temperature resistance, impact resistance, shock resistance, precision polishing mold forming can effectively improve the light intensity of 300cd (0°~JSC Average) in line with ECE R65 international standard
LED aluminum circuit board
LED aluminum alloy heat sink
Anti-corrosion aluminum alloy base

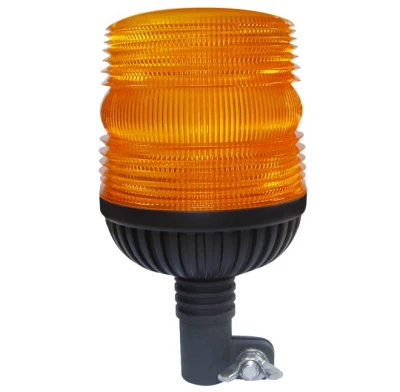

| IP69K Warning Light For Waterproof Car (MODEL:DF-J-JY24DM) |
| Light source type: 24X1W high brightness LED |
| Waterproof level:100% IP69K(100KPa) |
| Anti-fog process: 100% nitrogen filling |
| Heat and temperature pressure relief process: stainless steel waterproof breathable valve |
| Warning light color: amber, red, blue (optional) |
| Material: Die-cast aluminum alloy base (ADC12) + aluminum alloy heat sink + PCB board + PC lampshade |
| Condenser lens: Fresnel special optical design |
| Alarm mode: single mode warning flash (optional: single/double/three/four flashes) |
| Viewing angle: 360° |
| Light intensity:304cd(0°~JSC Average) |
| Flash frequency:2 Hz ≤F ≤ 4 Hz |
| International quality standards:ECE R65/ R10(EMC) |
| Installation method international general cigarette lighter aluminum alloy handle bracket installation method |
| Anti-vibration level: 10G |
| Warranty time:3 years |
| Operating temperature: -40ºC to +65ºC |
| Operating voltage range:DC10-32V |
| Weight:800g |

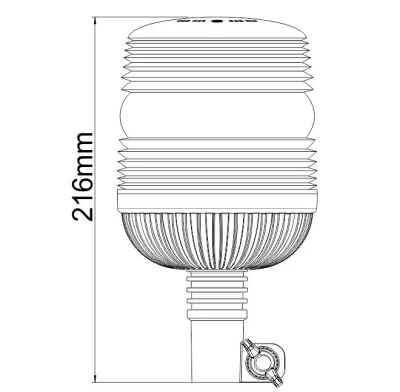

| Dimensions:216(H) x118(D) mm |
