Basic Info.
Model NO.
DF-J-EY24
Viewing Angle
360 Degrees
International Quality Standards
ECE R65/ R10(EMC)
Anti-Vibration Level
10g
Weight
500g
Dimensions
168(H) X93(D) mm
Transport Package
Standard Veise Packing Means / as Requests 4 Sets
Specification
168(H) x93(D) mm
Trademark
veise
Origin
Guangzhou China
Production Capacity
40000/Month
Product Description
Product Description
Waterproof IP69K LED Beacon Light with Cigarette lighter rod
Features
ECE R65 International Light Intensity Standard
IP69K (100KPa) waterproof rating
Actual power 28W effective power: 24W
Fully sealed vacuum nitrogen filling anti-fogging function
Aluminum alloy base and aluminum alloy column dual heat dissipation design
Aluminum-based circuit board heat dissipation to ensure electrical stability
Patented design of stainless steel breather valve with constant pressure
Three electroplated optical cups effectively enhance the optical distance
Precise high light transmittance PC dome shield, impact resistance
6 kinds of warning light modes are available (fast and slow rotation, single/double/three/four flash memory)
Light intensity: 320cd/m²(0°~JSC Average)
Flash frequency: 2 Hz ≤F ≤ 4 Hz
Built-in protection for reverse polarity, LED constant current, wide voltage and load dump pulse voltage
| Model | DF-J-EY24 |
| Maximum power consumption | 28W |
| Light source type | 24X1W high brightness LED |
| Waterproof rating | 100% IP69K(100KPa) |
| Anti-fog technology | 100% nitrogen filling |
| Thermal pressure relief process | Stainless steel waterproof breathable valve |
| Warning light color | Amber, red, blue (optional) |
| Material | Die-cast aluminum alloy base (ADC12) + aluminum alloy heat dissipation column + aluminum base PCB board + PC lampshade |
| Inner lens | Special optical design of hybrid wide-angle mirror |
| Alarm mode | 6 + Flashing and rotating modes are controlled by internal momentary switch memory |
| Viewing angle | 360 degrees |
| Light intensity | 320cd/m²(0°~JSC Average) |
| Flash frequency | 2 Hz ≤F ≤ 4 Hz |
| International quality standards | ECE R65/ R10(EMC) |
| Installation method | International universal cigarette lighter nylon flexible plug bracket |
| Anti-vibration level | 10G |
| Warranty time | 3 years |
| Working temperature | -40ºC to +65ºC |
| Operating voltage range | DC10-32V |
| Weight | 500g |

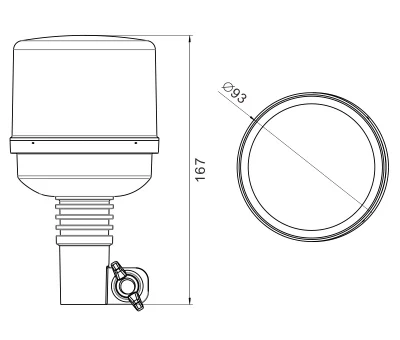

| Dimensions | 168(H) x93(D) mm |
