Basic Info.
Model NO.
DF-J-EY24
Anti-Fog Technology
100% Nitrogen Filling
Thermal Pressure Relief Process
Stainless Steel Waterproof Breathable Valve
Alarm Mode
6 + Flashing and Rotating Modes Are Controlled by
International Quality Standards
ECE R65/ R10(EMC)
Installation Method
International Universal Cigarette Lighter Nylon FL
Warranty Time
3 Years
Working Temperature
-40ºC to +65ºC
Operating Voltage Range
DC10-32V
Dimensions
168(H) X93(D) mm
Weight
500g
Transport Package
Carton
Specification
167*93
Trademark
Veise
Origin
Guangzhou, China
HS Code
9405402000
Production Capacity
50000/Month
Product Description

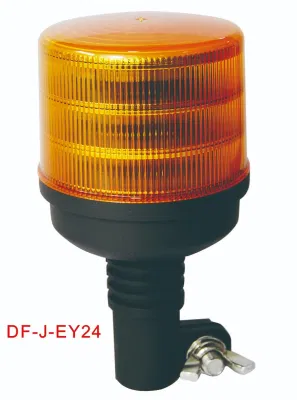

ECE R65LED Beacon Warning Light
Product Features
Product Features
Fully sealed, vacuum, filled with nitrogen
Patented design of pressure relief valve
IP69K waterproof rating
24 high-brightness 1 watt LEDs
3pcs professional optical design ABS plating reflector
High transmittance polycarbonate protection dome
ECE R65 SAEJ845 Class1 international Light Intensity Standard
LED aluminum circuit board
Heat dissipation aluminum alloy base
Heat dissipation aluminum alloy column
6 blinks + 2 rotation warning light mode

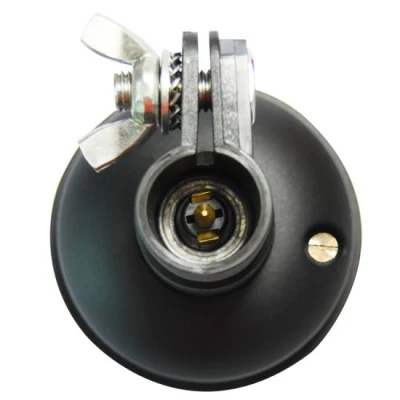

International universal cigarette lighter power connection plug, nylon flexible bracket
Built-in reverse polarity, LED constant current, wide voltage and load-dump pulse voltage protection circuit
Patented design of pressure relief valve
IP69K waterproof rating
24 high-brightness 1 watt LEDs
3pcs professional optical design ABS plating reflector
High transmittance polycarbonate protection dome
ECE R65 SAEJ845 Class1 international Light Intensity Standard
LED aluminum circuit board
Heat dissipation aluminum alloy base
Heat dissipation aluminum alloy column
6 blinks + 2 rotation warning light mode
International universal cigarette lighter power connection plug, nylon flexible bracket
Built-in reverse polarity, LED constant current, wide voltage and load-dump pulse voltage protection circuit
Product Technical Parameter
| IP69K Waterproof LED Warning Beacons (MODEL:DF-J-EY24F) |
| LED:24x1W High Intensity LED's |
| Maximum Power Consumption: 28Watts |
| Maximum Luminous intensity:320cd/m²(0°~JSC Average) |
| Waterproof Rating:100% IP69K(100KPa) |
| Color Temperature: 1800K (Amber) |
| Flash frequency:2 Hz ≤F ≤ 4 Hz |
| Approval:ECE R65/ R10(EMC) |
| Light Color: Amber/ Red/ Blue (option) |
| Alarm way:6+Flashing Rotating Patterns via Internal Momentary Switch |
| Visibility: 360 Degree |
| Material:Die-casting Aluminum Alloy Base + PC Lampshade + Aluminum Alloy Heat Dissipation Column |
| Optics Inner Lens:Hybrid Wide-Angle Reflector *3 |
| Mounting: Flexible DIN Pole Mount |
| Load Dump: DC14+67V(Td400mS) 5pulses |
| Operating temperature: -40ºC to +65ºC |
| Warranty: 3 years |
| Shockproof: 10G |
| Free Operating Voltage::DC10-32V(DC48V Custom-made) |
| Weight::600g |

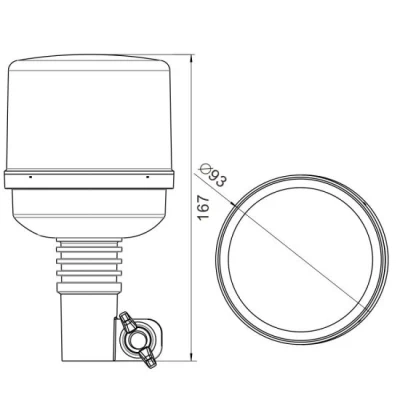

| Dimensions:167(H) x93(D) mm |
| Widely used in construction vehicles (excavators, logging machines, rollers bulldozers, cranes, mining vehicles, agricultural machinery, ambulances, forklifts) special vehicles, off-road vehicles, ATV and other vehicle lighting and mining field patrols and other special or mobile environment lighting etc. |

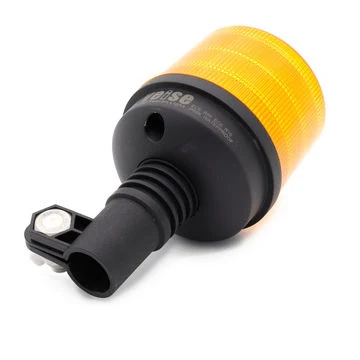

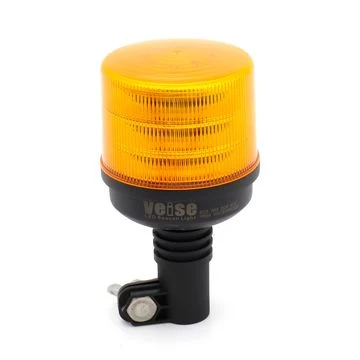

Products Show
