Basic Info.
Model NO.
DF-J-BY24
Certification
CCC, CE, EMC, FCC, RoHS, ECE R65/ R10(EMC) /SAE J845 Class 1
Operating Voltage
DC10-30V
Input Voltage
12V
LED Chips Brand
Osram
Transport Package
Cartoon Box
Specification
96*144MM
Trademark
Veise
Origin
Guangzhou, China
HS Code
8525801390
Production Capacity
50000PCS/Month
Product Description

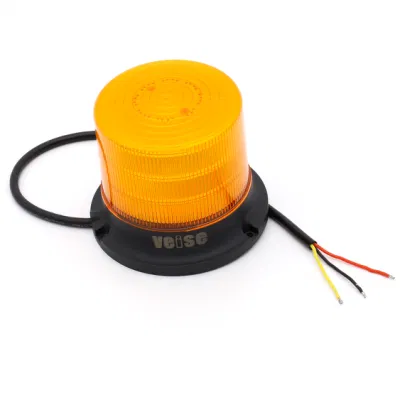

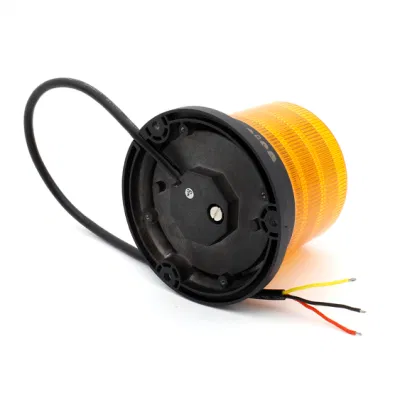

LED Beacon Warning Lights
LED Beacon Warning Light Power 24W
ECE R65/ R10(EMC) /SAE J845 Approval
IP69K(100KPa) Waterproof Level and Nitrogen filling for Anti-fog
Three High Optic Lens Improves the Visibility of the LEDs
Breath Patent Design Keep Antifogging of Air Pressure Batance
High Intensity Aluminum Alloy PCB Modules
Aluminum Alloy Base inside Alloy PCB,Alloy Pillar with Good Heat Dissipation Ensuring Stable Electrical Performancee
High Transmittance Impact Resistant Polycarbonate Dome
Universal Flexible Pipe Mount Compatible with all Vehicles
6 Selectable Memory Flash Patterns (Rotate,Single Flash,Double Flash,Quadruple Flash)
Reverse Polarity and Load Pulse Voltage Protection
LED Emergency Flash Strobe Beacon Warning Light for Agricultural Equipment,Farm Tractor,Heavy Equipment,Forklift,Municipal
LED Beacon Warning Lights (MODEL:DF-J-BY24)
Power:24 Watt Luminous Output
Type of light source:24x1W High Intensity LED's
Waterproof Level:100% IP69K(100KPa)
Light Color: Amber/ Red/ Blue (option)
EEI Level: A+ (EU 874-2012)
Visibility:360 Degree
Luminous intensity:100>J>600(cd)
Flash frequency:2>F>4(Hz)
Material:Die-casting Aluminum Alloy Base + PC lampshade + aluminum base(ADC12)
Inner lens:Hybrid Wide-Angle Reflector Optics
Approval:ECE R65/ R10(EMC) /SAE J845 Class 1
Alarm way:6+Flashing & Rotating Patterns via Internal Momentary Switch
Mounting Option: Magnetic Base or Fixed Bolt (option)
Operating temperature: -40ºC to +85ºC
Work life:50000 Hours
Shockproof: 10G
Free Operating Voltage::DC10-32V(DC48V Custom-made)
Weight::500g

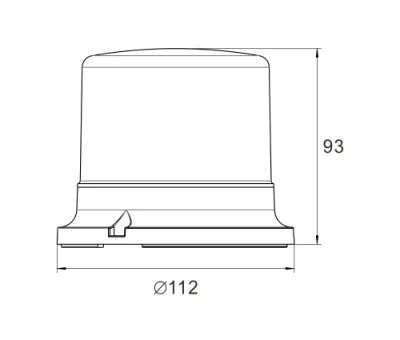

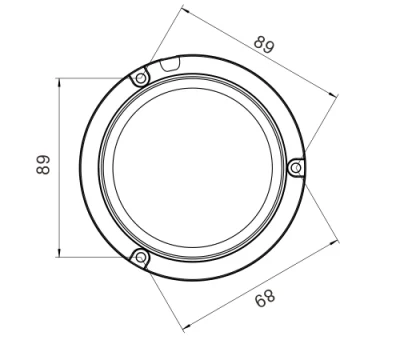

Dimensions:93(H) x112(D) mm
LED Beacon Warning Light Power 24W
ECE R65/ R10(EMC) /SAE J845 Approval
IP69K(100KPa) Waterproof Level and Nitrogen filling for Anti-fog
Three High Optic Lens Improves the Visibility of the LEDs
Breath Patent Design Keep Antifogging of Air Pressure Batance
High Intensity Aluminum Alloy PCB Modules
Aluminum Alloy Base inside Alloy PCB,Alloy Pillar with Good Heat Dissipation Ensuring Stable Electrical Performancee
High Transmittance Impact Resistant Polycarbonate Dome
Universal Flexible Pipe Mount Compatible with all Vehicles
6 Selectable Memory Flash Patterns (Rotate,Single Flash,Double Flash,Quadruple Flash)
Reverse Polarity and Load Pulse Voltage Protection
LED Emergency Flash Strobe Beacon Warning Light for Agricultural Equipment,Farm Tractor,Heavy Equipment,Forklift,Municipal
LED Beacon Warning Lights (MODEL:DF-J-BY24)
Power:24 Watt Luminous Output
Type of light source:24x1W High Intensity LED's
Waterproof Level:100% IP69K(100KPa)
Light Color: Amber/ Red/ Blue (option)
EEI Level: A+ (EU 874-2012)
Visibility:360 Degree
Luminous intensity:100>J>600(cd)
Flash frequency:2>F>4(Hz)
Material:Die-casting Aluminum Alloy Base + PC lampshade + aluminum base(ADC12)
Inner lens:Hybrid Wide-Angle Reflector Optics
Approval:ECE R65/ R10(EMC) /SAE J845 Class 1
Alarm way:6+Flashing & Rotating Patterns via Internal Momentary Switch
Mounting Option: Magnetic Base or Fixed Bolt (option)
Operating temperature: -40ºC to +85ºC
Work life:50000 Hours
Shockproof: 10G
Free Operating Voltage::DC10-32V(DC48V Custom-made)
Weight::500g
Dimensions:93(H) x112(D) mm
-
FAQ
Q: Are you trading company or manufacturer ?A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
